Description

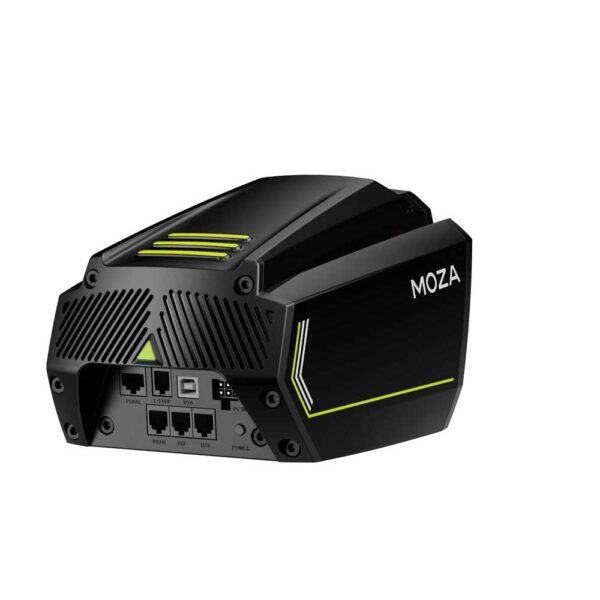

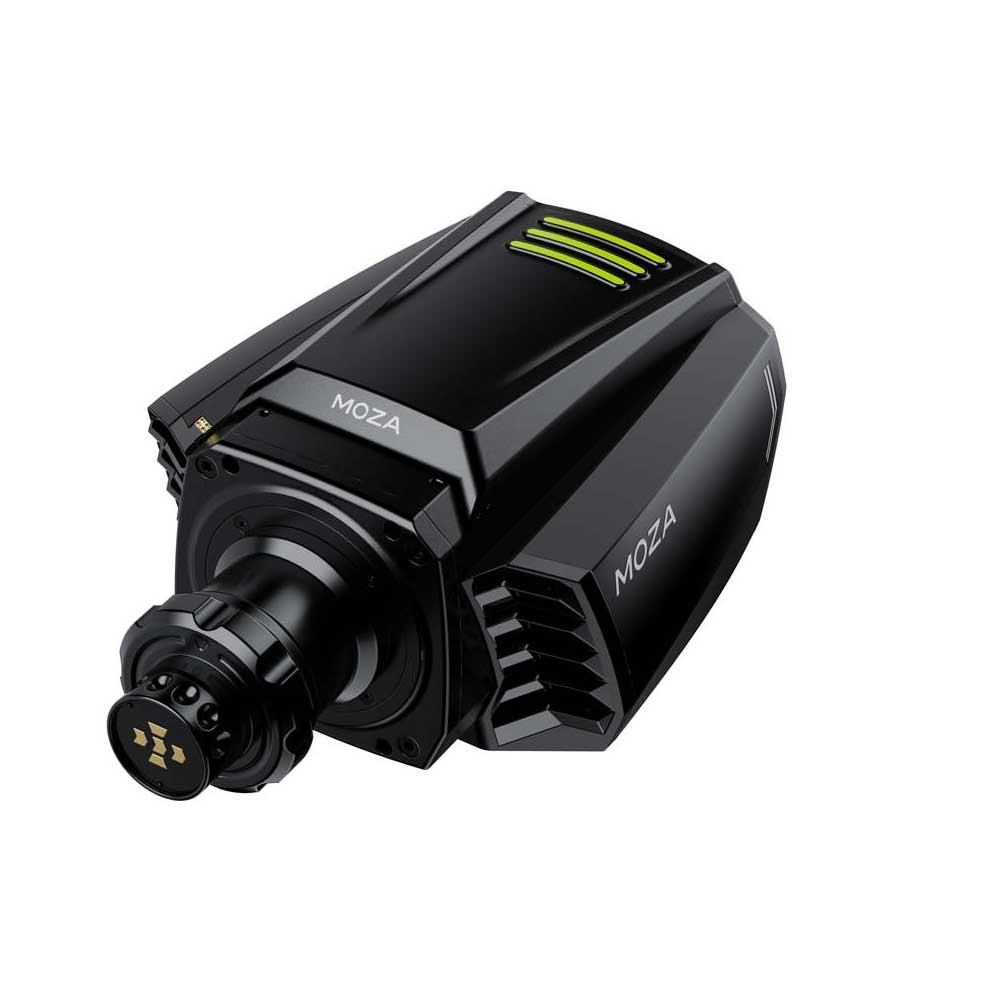

MOZA R16 Direct Drive Wheel Base16Nm of Direct Drive Power
With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.
21-Bit Magnetic Encoder With 280MHz High-Performance Processor
Divides each full rotation into 2,097,152 precise steps.
Delivers microscopic 0.00017° resolution.
Enables ultra-smooth control feel and instant response.
Reproduces exceptionally detailed force feedback.
MOZA High-Performance Servo Motor
Race-grade Performance for Sim Racing
Innovative Segmented Rotor Design
Asymmetric segmented skew design. Significantly reduces cogging torque & EM vibration. Near-silent operation at all speeds.
High Torque Density
Optimized slot-fill copper windings.
High-permeability silicon steel core.
NdFeB permanent magnets for maximum output.
18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response.
Wide Torque Range
Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off.
Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection.
Effectively suppresses eddy current losses.
Superior thermal management for sustained performance.

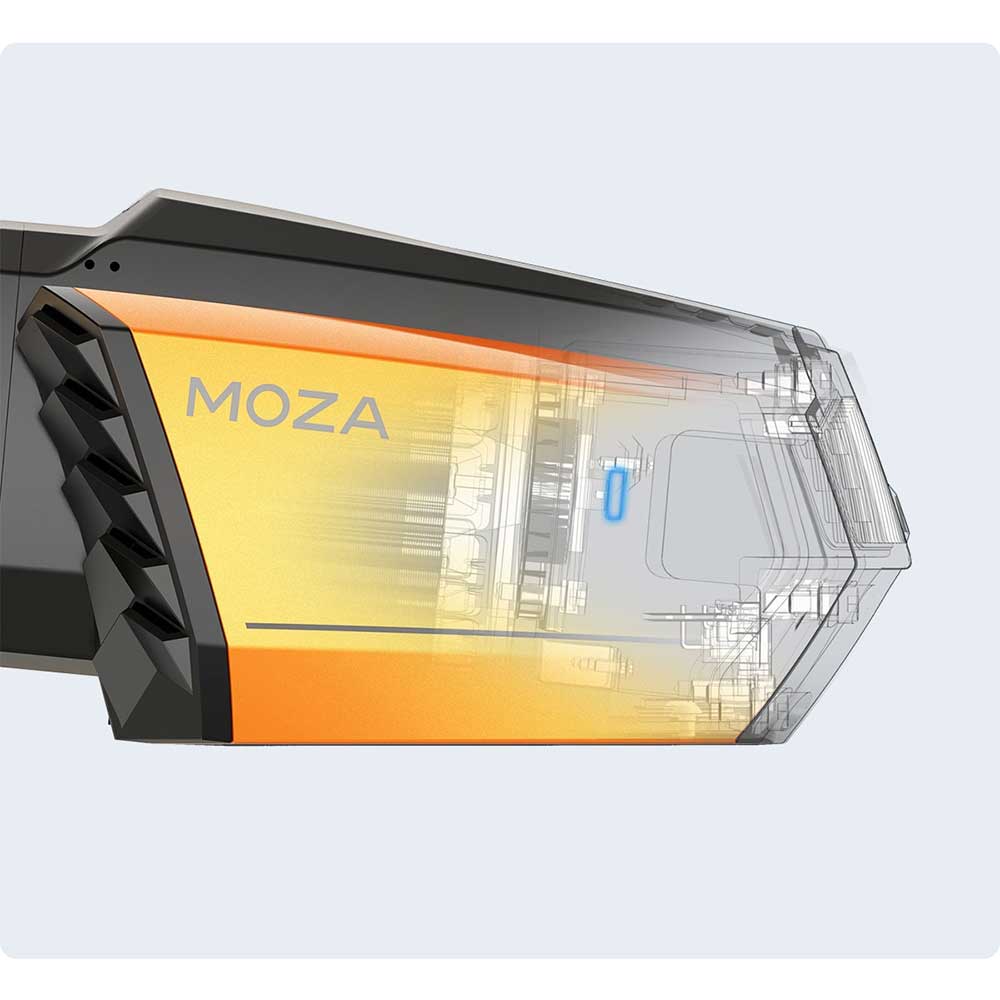

Intelligent Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

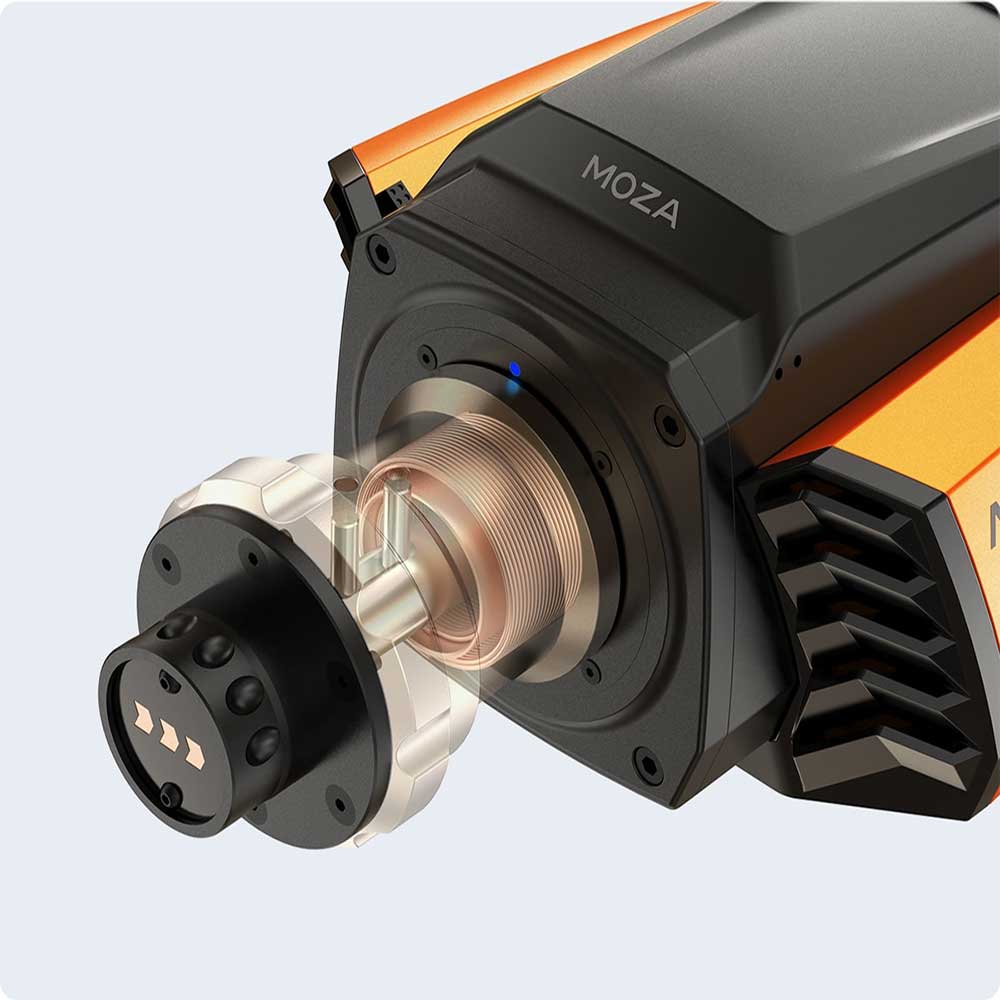

Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.
Ultra Low Static Torque
Feel everything through an optimized motor design, offering practically zero torque ripple, notching or cogging. Combined with powerful torque delivery, hard braking, curbs, and drifts are clearer and stronger than ever before.
Speed-dependent Force Feedback Dampening
This function will increase the damping FFB effect as the vehicle speed increases and reduces the dampening as the vehicle speed decreases to accurately mimic a real race car, resulting in greater high-speed stability and low-speed maneuverability.
Specs
Platform: PC
FFB Drive System: Direct Drive
MOZA Pit House Control: Support
Max Steering Angle: 90~2700°
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Peak Power: 360W
Input voltage: 110V~220V AC —>36V DC
USB Refresh Rate: 1000Hz
V-shaped Struts: –
Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
Indicator: YES
App Functions: Supported

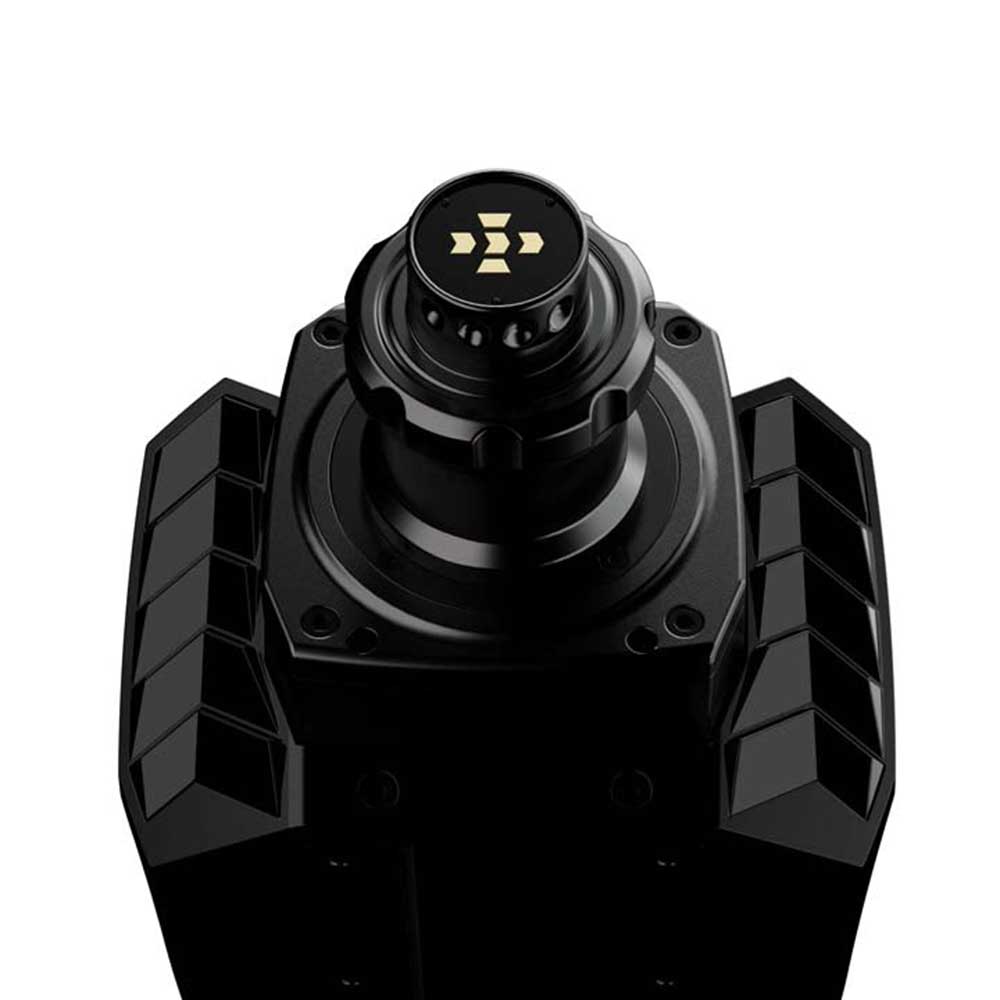

Quick Release: Supported
Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Box Contents: R16 V2 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method: Bottom mount
Side Mount Option: With optional side/front mount bracket
Desk Clamp: Optional
Emergency Stop Switch: Optional
Online Firmware Upgrade: Applicable
Firmware Update: Applicable
Dimension (L x W x H)（mm）: 327*170*130
Weight: 8.9kg
For more information click here to visit the manufacturer's website
